XS508B1PBP01M8

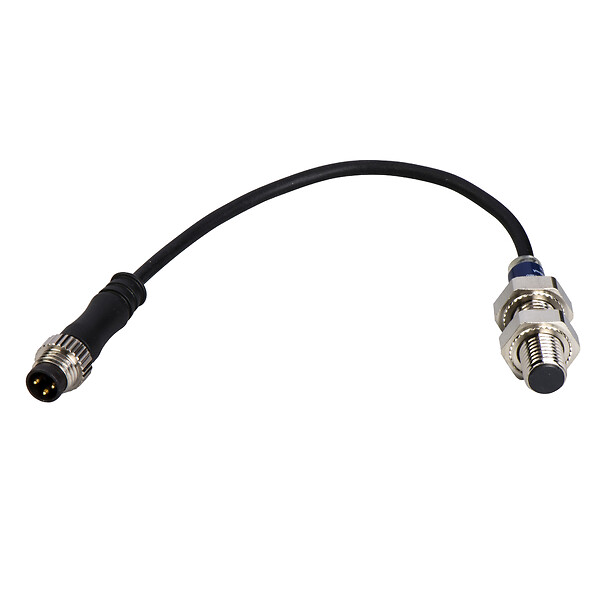

Inductive proximity sensors XS, inductive sensor XS5 M8, L33mm, stainless, Sn1.5 mm, 12...24 VDC, pigtail M8
Commercialised
Déplier tout
Fiche technique
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Product specific application
Not applicable
Sensor name
XS5
Sensor design
Cylindrical M8
Size
33 mm
Body type
Fixed
Enclosure material
Stainless steel 303
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NC
Electrical connection
Male connector M8, 3 pins
Discrete output type
PNP
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
IP degree of protection
IP67 conforming to IEC 60529
Switching capacity in mA
<= 200 mA DC with overload and short-circuit protection
Detector flush mounting acceptance
Flush mountable
Material
Metal
Output circuit type
DC
Detection face
Frontal
ISO thread
M8 x 1
Front material
PPS
Differential travel
1...15 % of Sr
Wire insulation material
PVC
Sensing range
> 0...2.5 mm
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 5000 Hz
Current consumption
<= 10 mA no-load
Delay first up
10 MILLISECOND
Marking
CE
Delay response
0.1 MILLISECOND
Voltage drop
<2 V at closed state
Delay recovery
0.1 MILLISECOND
Product certifications
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.4 CENTIMETER
Package 1 width
8.2 CENTIMETER
Package 1 weight
22 KILOGRAM
Package 1 length
15.1 CENTIMETER
Unit type of package 2
S01
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
0.784 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
