XSDN401229EX

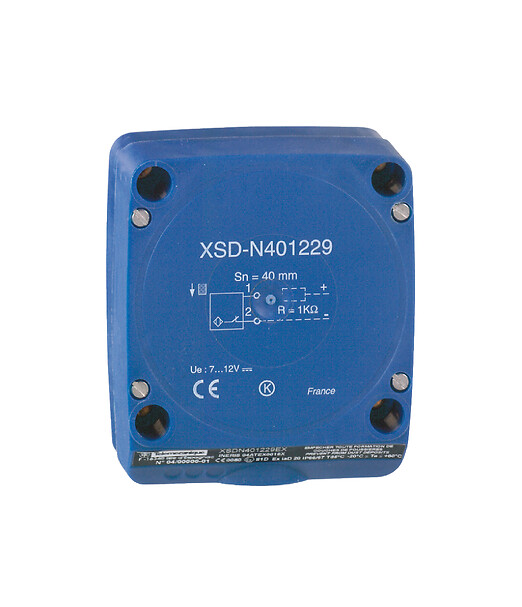

Inductive proximity sensors XS ATEX D, inductive sensor Namur, 80x80x40, plastic, Sn40mm, 7...12 VDC, terminals

End of commercialisation Date d'arrêt de fabrication : Fin de prestation de service :

Télécharger la fiche technique Download 3d cad file Trouver un distributeur

Déplier tout

Fiche technique

Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Device application
ATEX dust
Sensor name
XSD
Sensor design
Form 80 x 80 x 40
Size
40 mm
Body type
Fixed
Enclosure material
Plastic
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NC
Electrical connection
Screw-clamp terminals
Discrete output type
Namur
[Us] rated supply voltage
7...12 V DC
IP degree of protection
IP67 conforming to IEC 60529
Switching capacity in mA
<= 1 mA
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Output circuit type
DC
Detection face
Frontal
Front material
Plastic
Sensing range
> 15...40 mm
Status LED
Output state: 1 LED (red)
Switching frequency
<= 25 Hz
Residual current
3 mA open state
Marking
II1 D-Ex ia IIIC T85°C Da IP66/67
Product certifications
INERIS 04ATEX0016X
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
15 CENTIMETER
Package 1 width
5.5 CENTIMETER
Package 1 weight
530 GRAM
Package 1 length
9 CENTIMETER
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Déplier tout

Produits et accessoires associés

XSZBD10

Accessory for sensor, replacement bracket
