XY2CE1A470EX

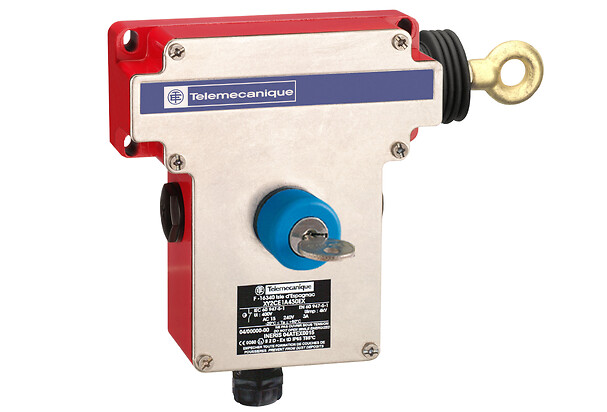

Latching emergency stop trip wire switch, Telemecanique Emergency stop rope pull switches XY2C, RH side, 2NC, key release pushbutton
End of commercialisation Date d'arrêt de fabrication : Fin de prestation de service :
XY2CE1A470EX is replaced by the following product:
XY2CE2A450EX
Latching emergency stop trip wire switch, Telemecanique Emergency stop rope pull switches XY2C, LH side, 1NC+1NO
Quantity : 1
Déplier tout
Fiche technique
Housing colour
-
Connections - terminals
-
Safety level
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 conforming to IEC 61508
Safety reliability data
B10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear
Positive opening
-
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Vibration resistance
10 gn (f= 10-300 Hz) conforming to IEC 60068-2-6
Shock resistance
-
IP degree of protection
IP65
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
20.5 CENTIMETER
Package 1 width
15.5 CENTIMETER
Package 1 length
9 CENTIMETER
Package 1 weight
1.597 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Déplier tout
Schéma technique
Dimensions
- (1) 3 plain holes for n° 13 (Pg 13.5) cable gland
- (2) Maximum extension.
- Ø 4 elongated holes Ø 6 mm/0.24 in.
Electrical Curves
AC Supply 50/60 Hz Inductive Circuit
- Y Millions of operating cycles
- X Current in A
Electrical Curves
Déplier tout
Documents et téléchargements
Document name
Date
Taille
1/4/2008
115565
1/4/2008
210899
1/4/2008
22740
1/4/2008
34254
1/4/2008
359030
1/4/2008
571206
1/4/2008
59790
Document name
Date
Taille
2025-09-15
10895759
Document name
Date
Taille
2022-11-01
2674615
Déplier tout
Produits et accessoires associés
XY2CZ105
Telemecanique Emergency stop rope pull switches XY2C, red galvanised cable, Ø 5 mm, L 50.5 m, for XY2C
XY2CZ107
Telemecanique Emergency stop rope pull switches XY2C, red galvanised cable, Ø 5 mm, L 70.5 m, for XY2C
XY2CZ110
Telemecanique Emergency stop rope pull switches XY2C, red galvanised cable, Ø 5 mm, L 100.5 m, for XY2C
XY2CZ213
Telemecanique Emergency stop rope pull switches XY2C, XY2CED & XY2CE tensioner
XY2CZ404
Telemecanique Emergency stop rope pull switches XY2C, turnbuckle M8, for XY2C
XY2CZ524
Telemecanique Emergency stop rope pull switches XY2C, cable clamp, Ø 5 mm, for XY2C
XY2CZ601
Telemecanique Emergency stop rope pull switches XY2C, fixed cable support, for XY2C
XY2CZ702
Telemecanique Emergency stop rope pull switches XY2C, end spring, for XY2CE
XY2CZ704
Telemecanique Emergency stop rope pull switches XY2C, cable end protector, Ø 5 mm, for XY2C
XY2CZ705
Telemecanique Emergency stop rope pull switches XY2C, pulley bracket, for XY2CH XY2CE
XY2CZ708
Telemecanique Emergency stop rope pull switches XY2C, pulley for cable Ø 5 mm maximum, for XY2C
