XZCPK75DL2

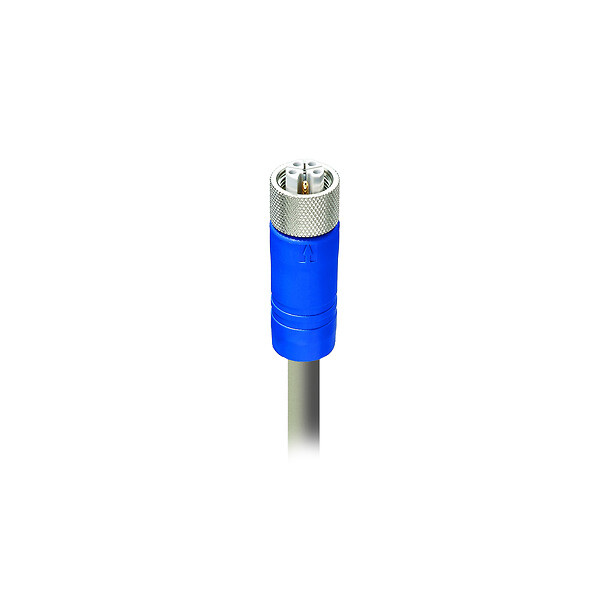

IO Link Master Single-Ended Pre-wired, L-Coded Power cable, Female, straight, 5-Pin(4+FE), PUR, 1.5 mm², 2 m
Commercialised
Déplier tout
Fiche technique
Accessory / separate part category
Adaptation accessories
Product or component type
Pre-wired power cable
Electrical connection
M12, 5 pins (included earth pin)
Cable composition
5 x 1.5 mm²
IP degree of protection
IP65
IP67
IP67
Product certifications
CE
cULus
cULus
[Ue] rated operational voltage
50 V AC/DC
Electrical connection
1 free end M12 straight
Wire insulation material
PUR
Insulating resistance
1 GIGAOHM
Package 1 height
25 CENTIMETER
Package 1 width
38 CENTIMETER
Package 1 length
4 CENTIMETER
Package 1 weight
255 KILOGRAM
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.4 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
