XZCR26K26CL5

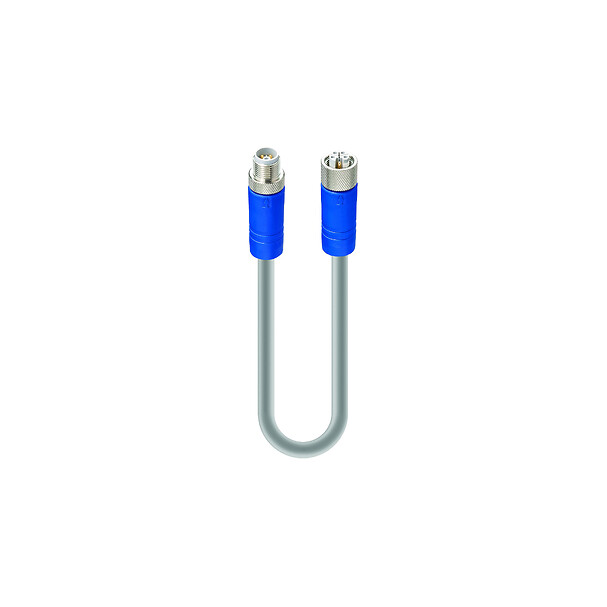

IO Link Master Jumper Power cable, Male elbowed M12 5 pin, Female elbowed M12 5 pin, PUR, 1.5 mm², 5 m
Commercialised
Déplier tout
Fiche technique
Accessory / separate part category
Cabling accessory
Product or component type
Jumper
Jumper cable end 1
5 pins (included earth pin) elbowed connector with screw-on
Jumper cable end 2
M12 female 5 pins (included earth pin) elbowed connector with screw-on
Electrical connection
M12, 5 pins (included earth pin)
Cable composition
5 x 1.5 mm²
IP degree of protection
IP65
IP67
IP67
Product certifications
CE
cULus
cULus
[Ue] rated operational voltage
50 V AC
< 60 V DC
Electrical connection
1 male + 1 female connectors M12
Wire insulation material
PUR
Insulating resistance
1 GIGAOHM
Package 1 height
25 CENTIMETER
Package 1 width
38 CENTIMETER
Package 1 length
4 CENTIMETER
Package 1 weight
615 KILOGRAM
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.375 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
